1964 Tiger Mk1 B9470403LRXFE TAC#239

Tiger Restoration Photos (click on the picture for a larger photo)

1964 Sunbeam Tiger Mk1. Vin# B9470403LRXFE. TAC inspected by STOA. TAC#239. Rotisserie Factory-Original Prepared Restoration. Rust-free Sunbeam Tiger with matching transmission and rear differential numbers from the factory (engine upgraded with authentic 1965 Ford HiPo 289 V8). Minor Upgrades include aluminum radiator with 6-blade fan, Replacement Lockheed Brake Booster, Ford Motorsport oil filter angle adapter, "Traction Master" Bolt-on Traction Bars, Pertronix pointless ignition system (lurks hidden, retains original appearance), and the LAT Edelbrock 4FB intake manifold with 4-barrel Holley 570 CFM Carburetor and ceramic coated headers. 289 HiPo Nostalgic Crane hydraulic tappet Performance camshaft matches original Ford HiPo V8 specification but doesn't require the regular adjustments required by a solid tappet camshaft. Engine Cooling upgrade installed retaining original fan shroud. All original Tiger parts cleaned and archived. Included in the restoration were the installation of shifter activated Sparto reverse lights, original presentation radio with upgraded modern internals, Smith clock and volt meter and fresh air venting.

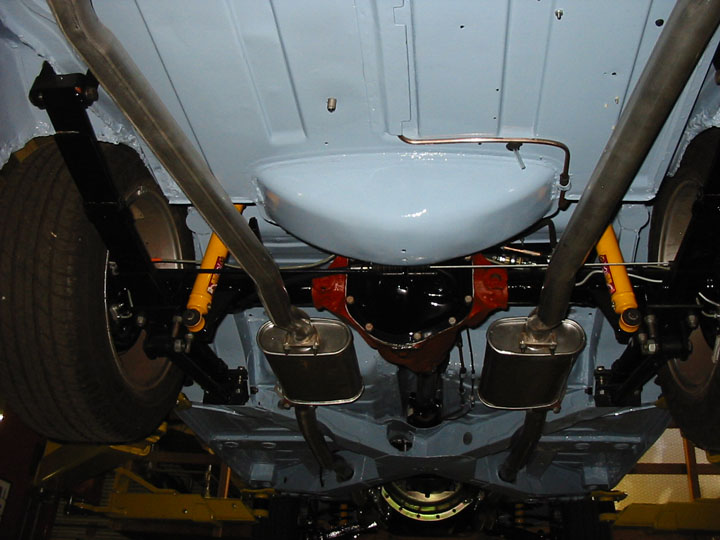

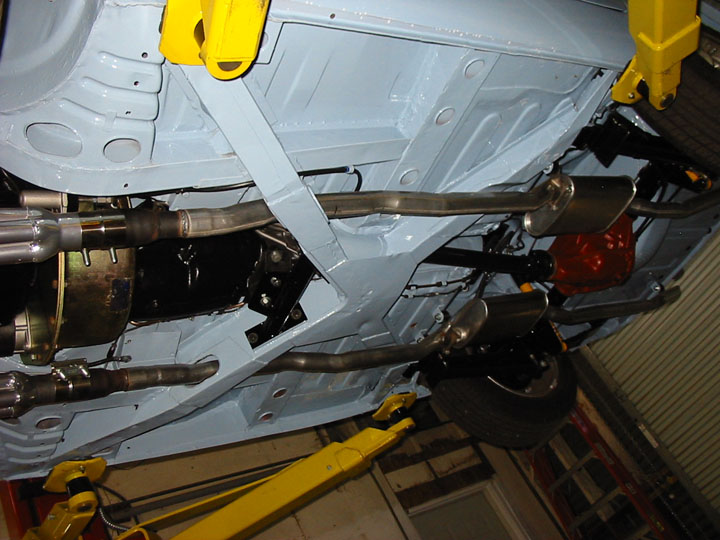

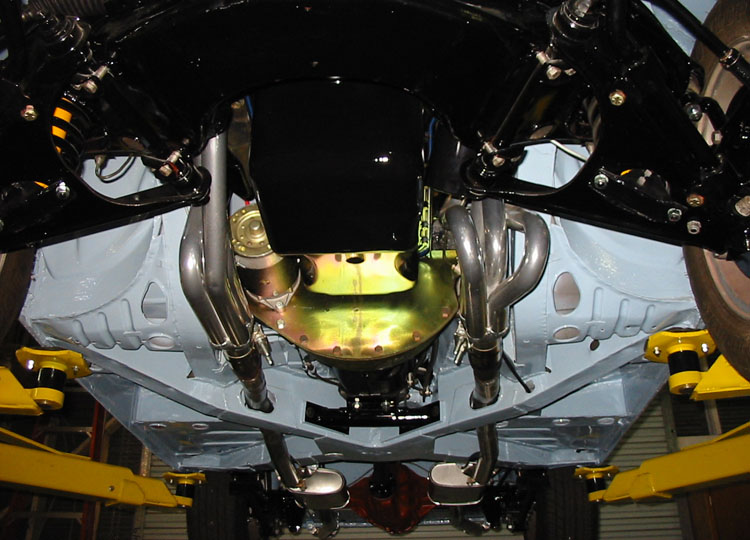

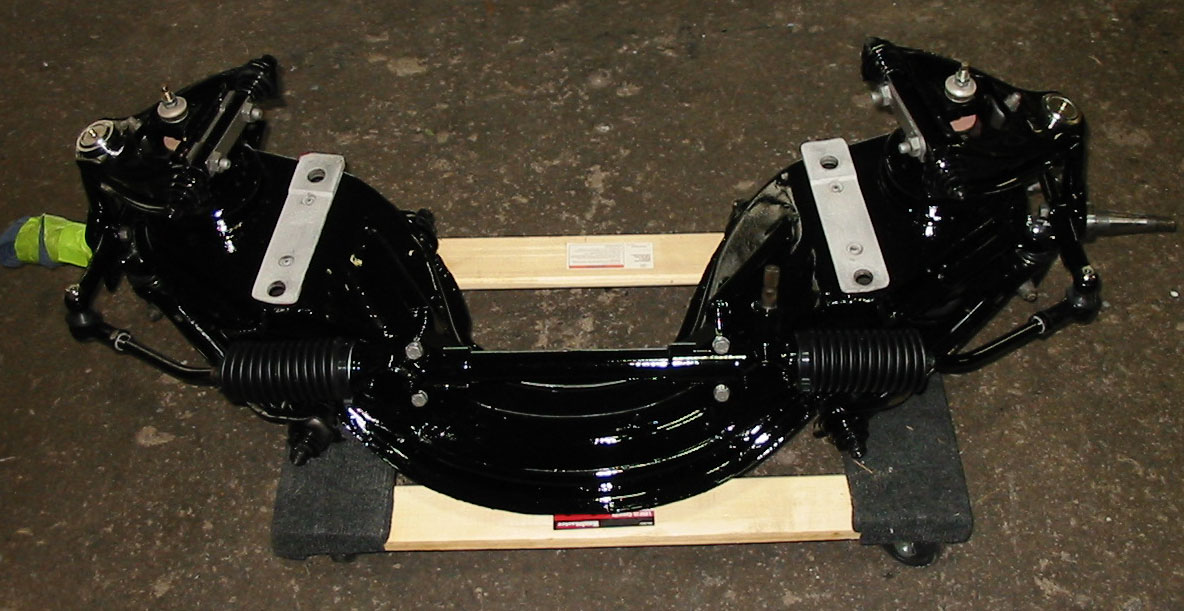

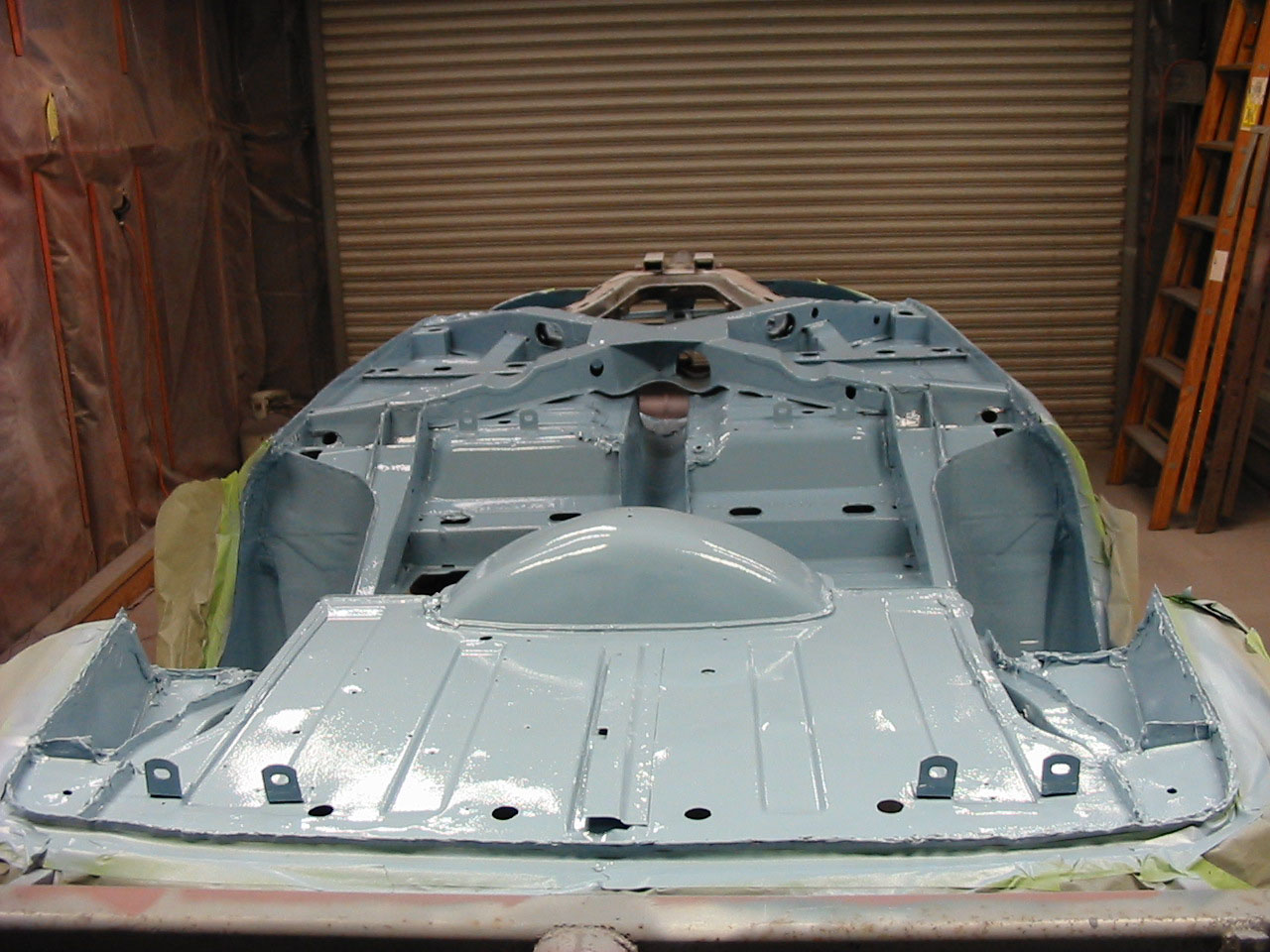

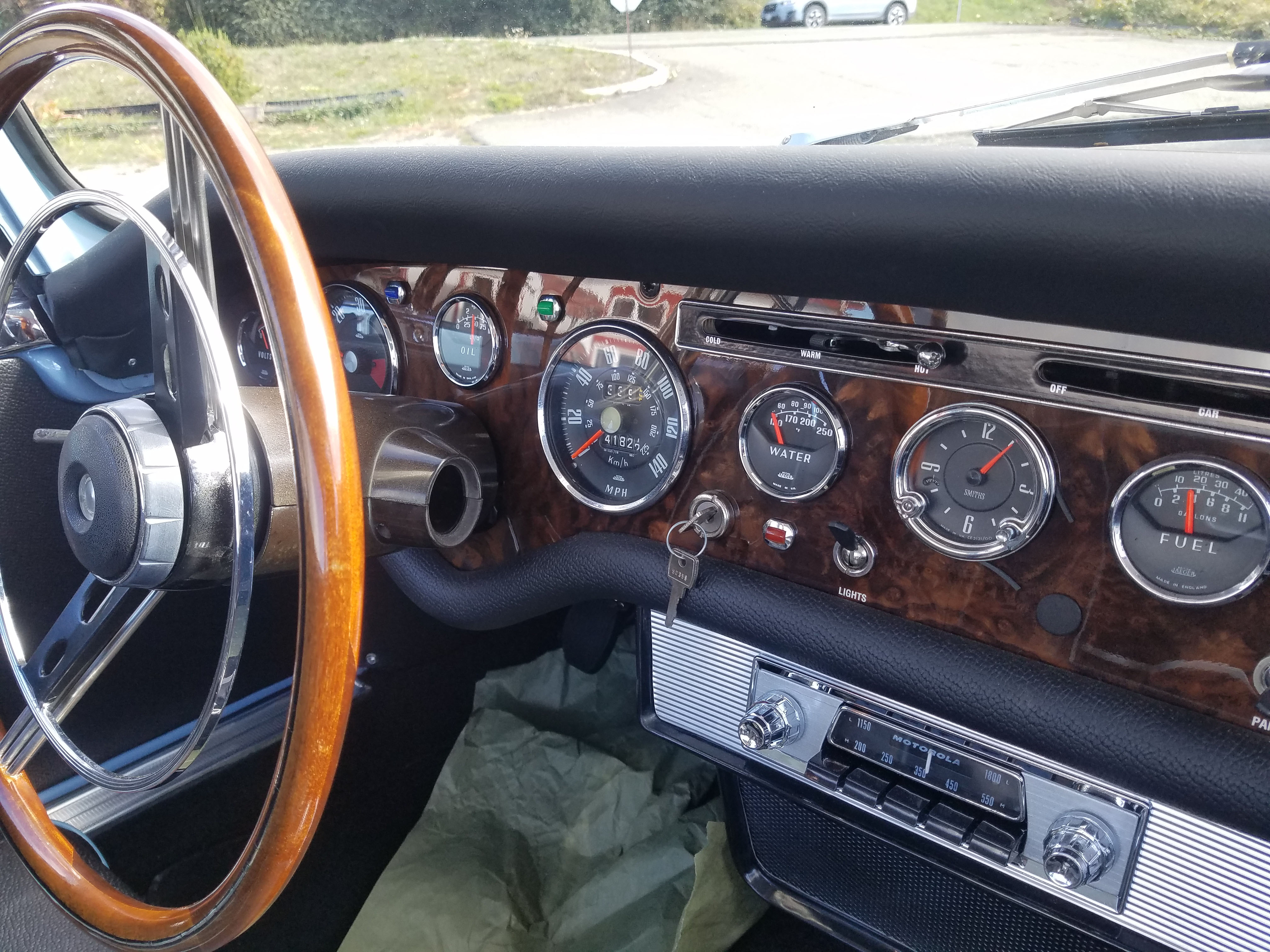

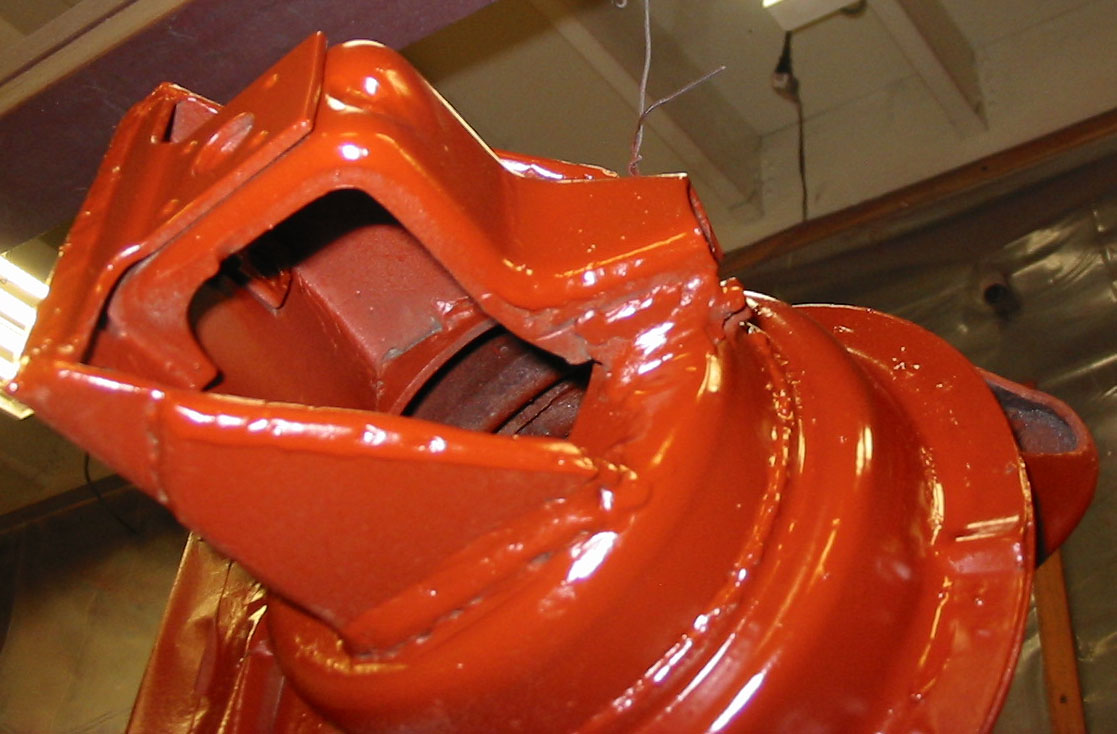

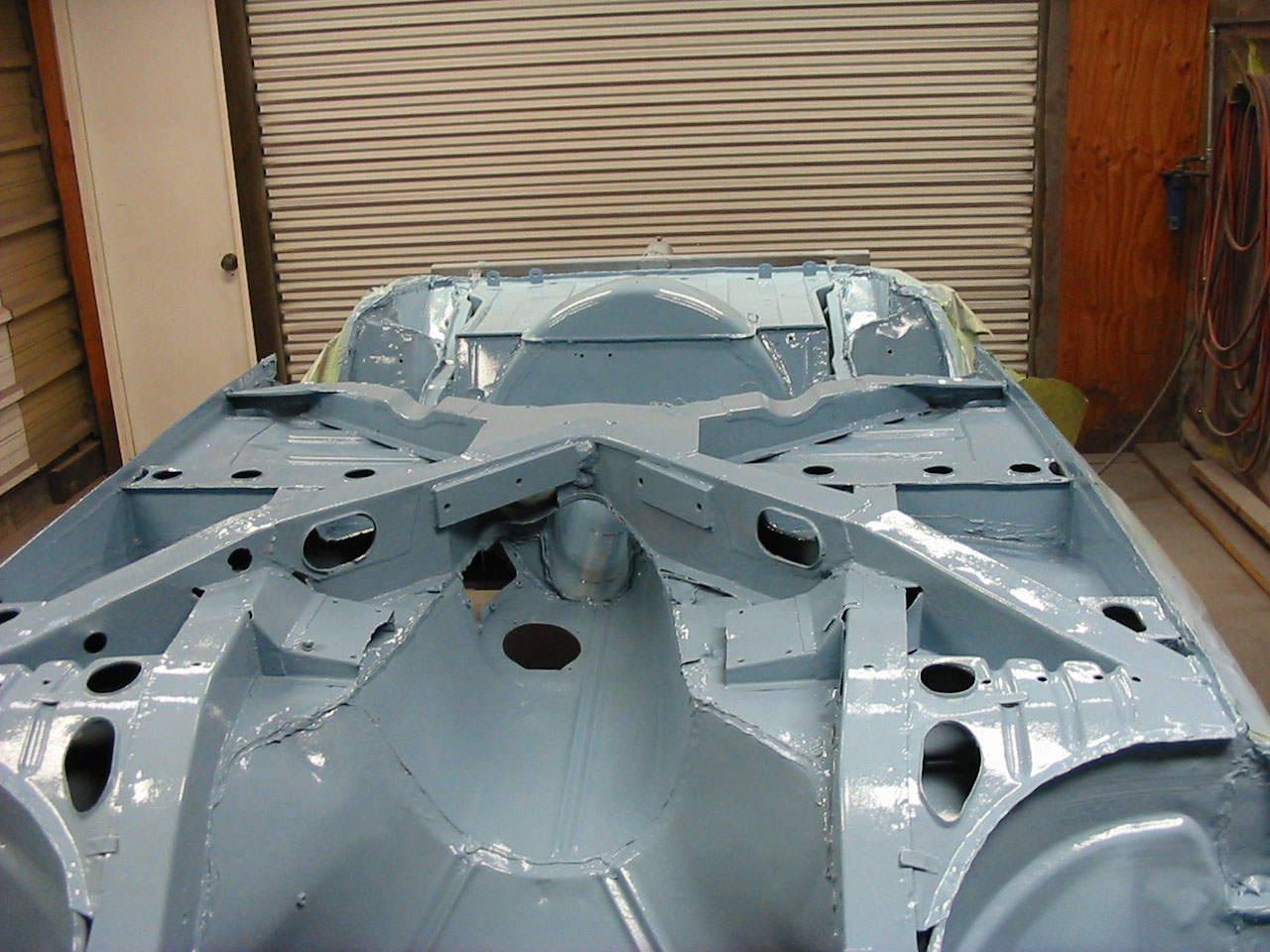

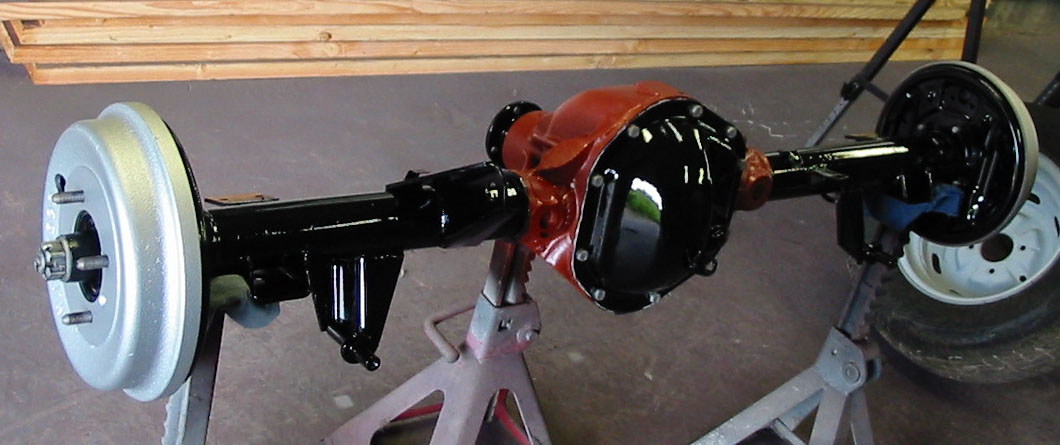

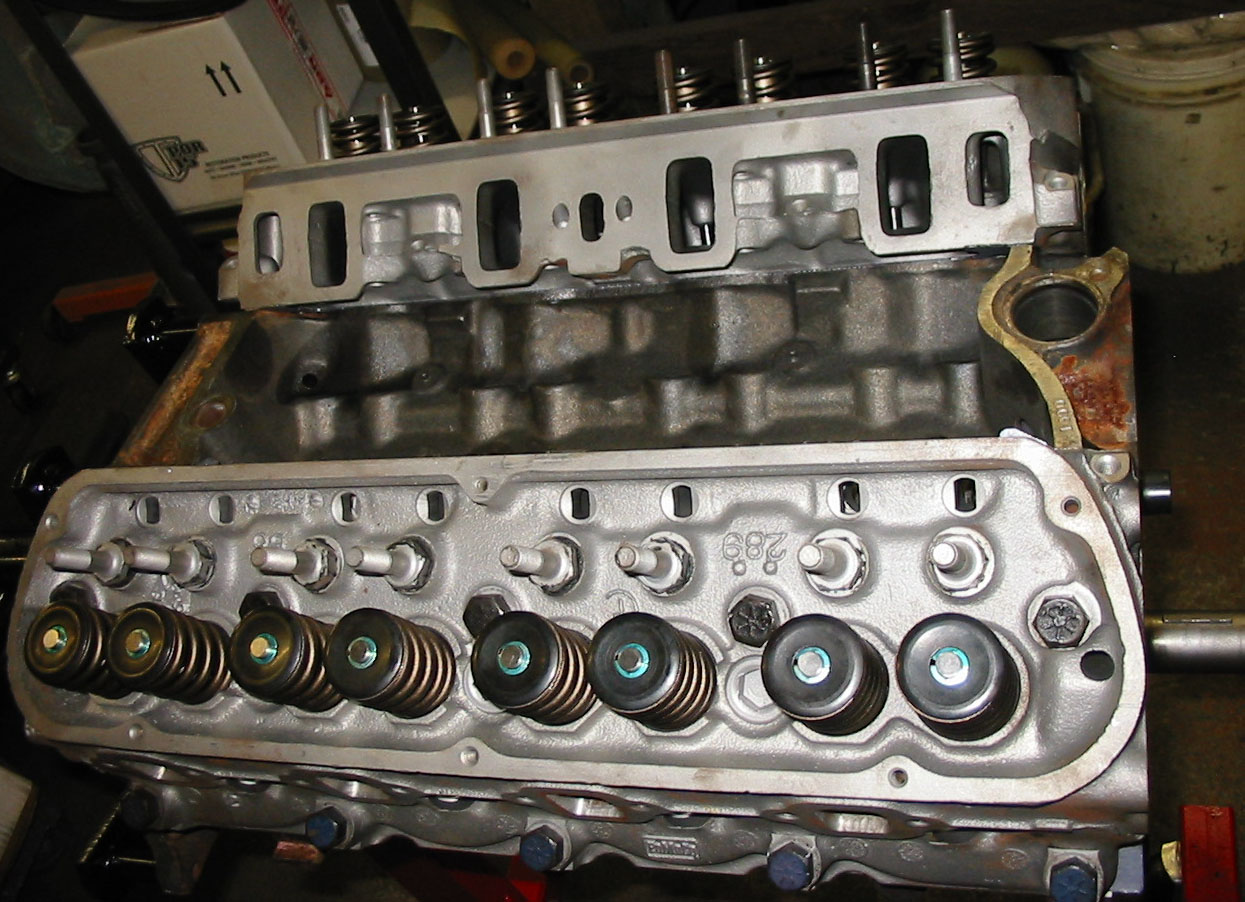

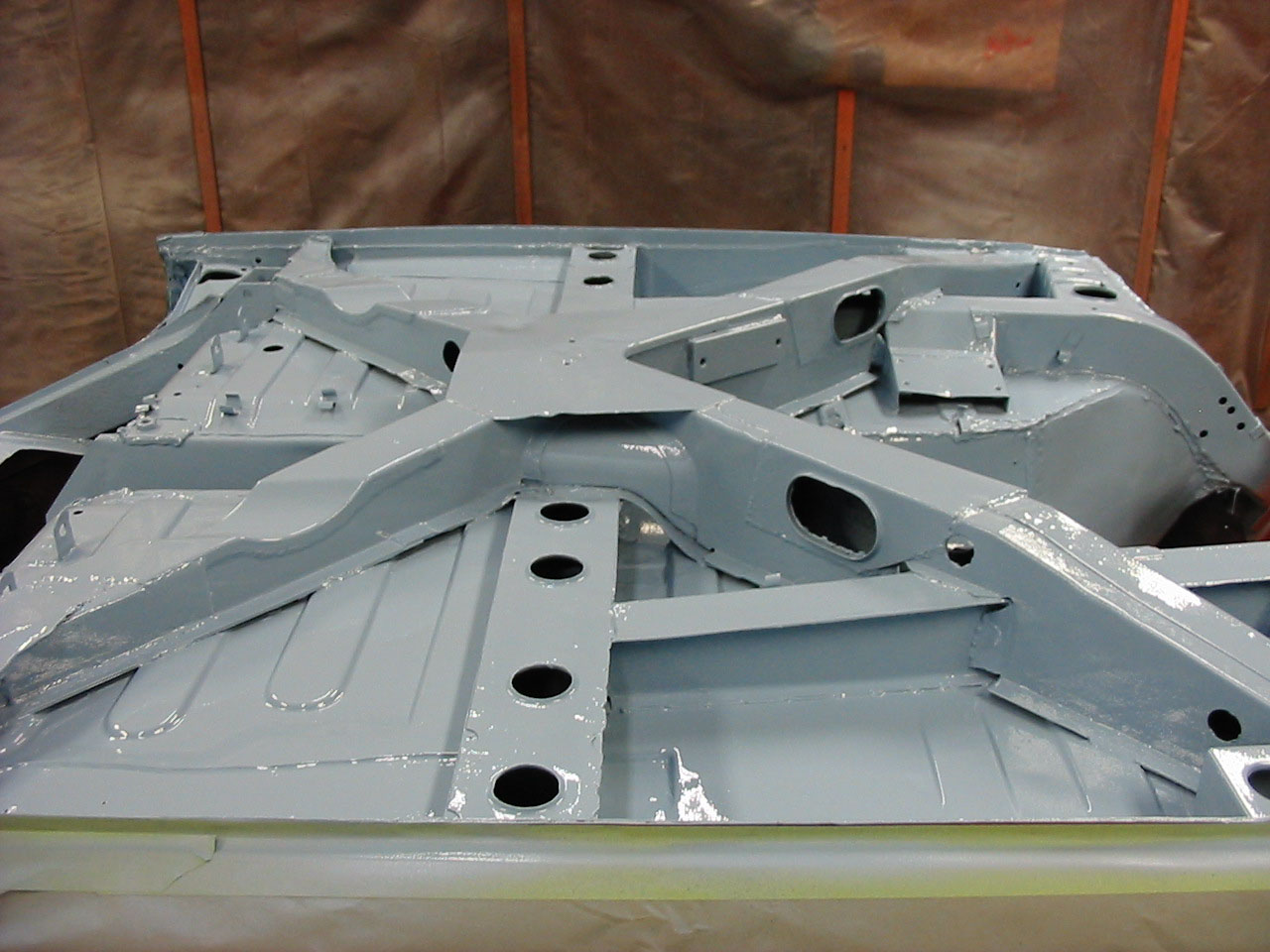

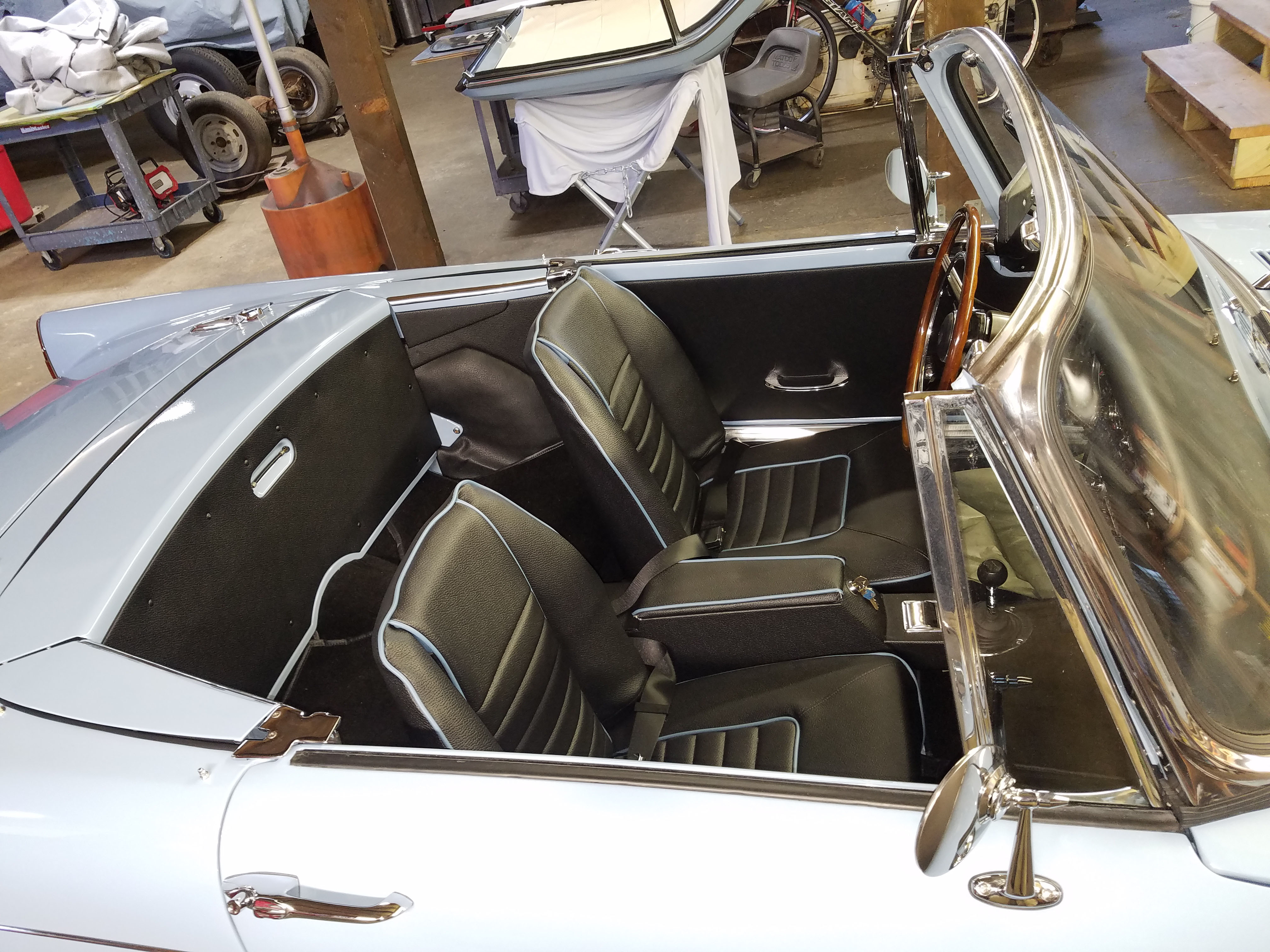

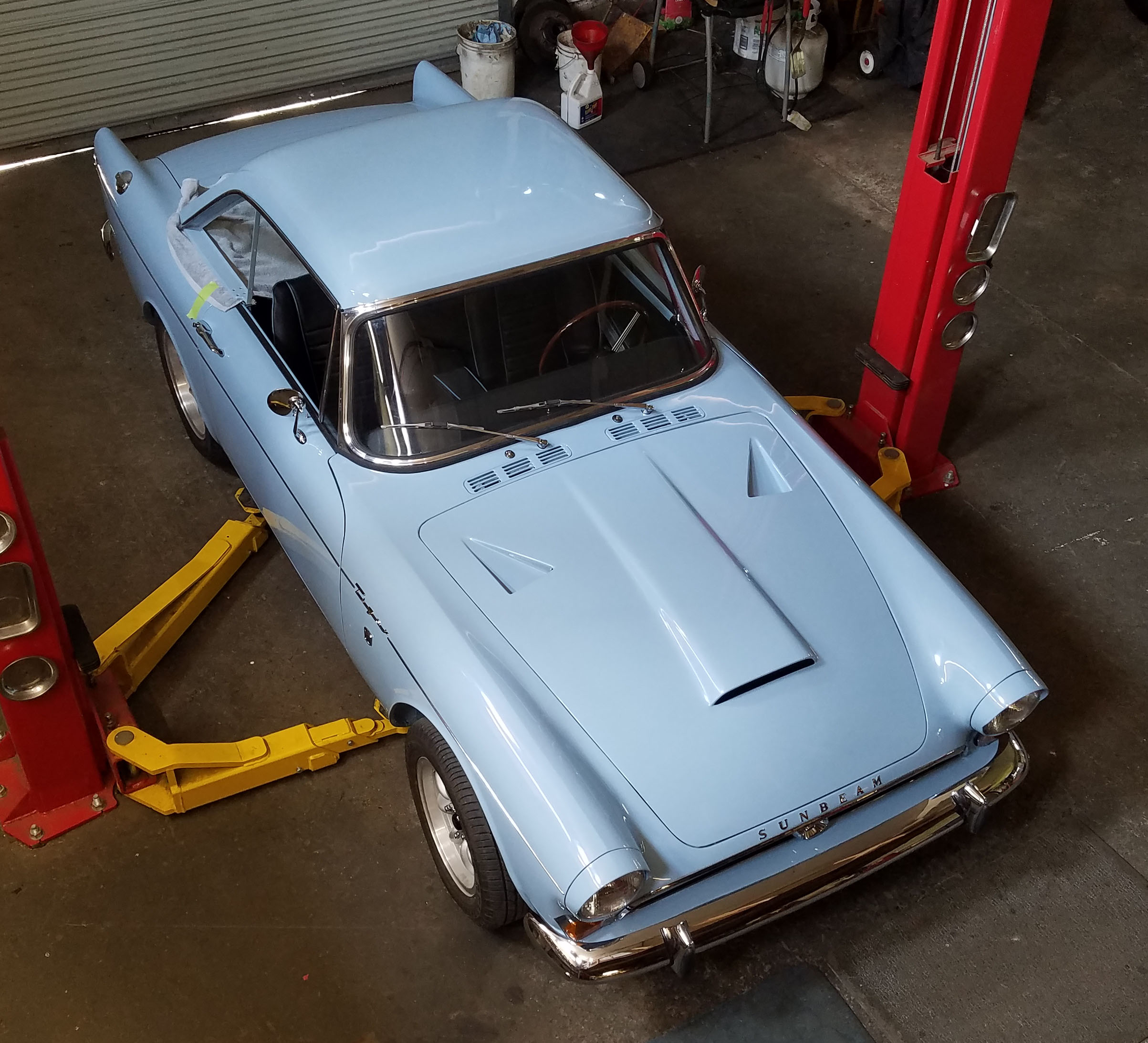

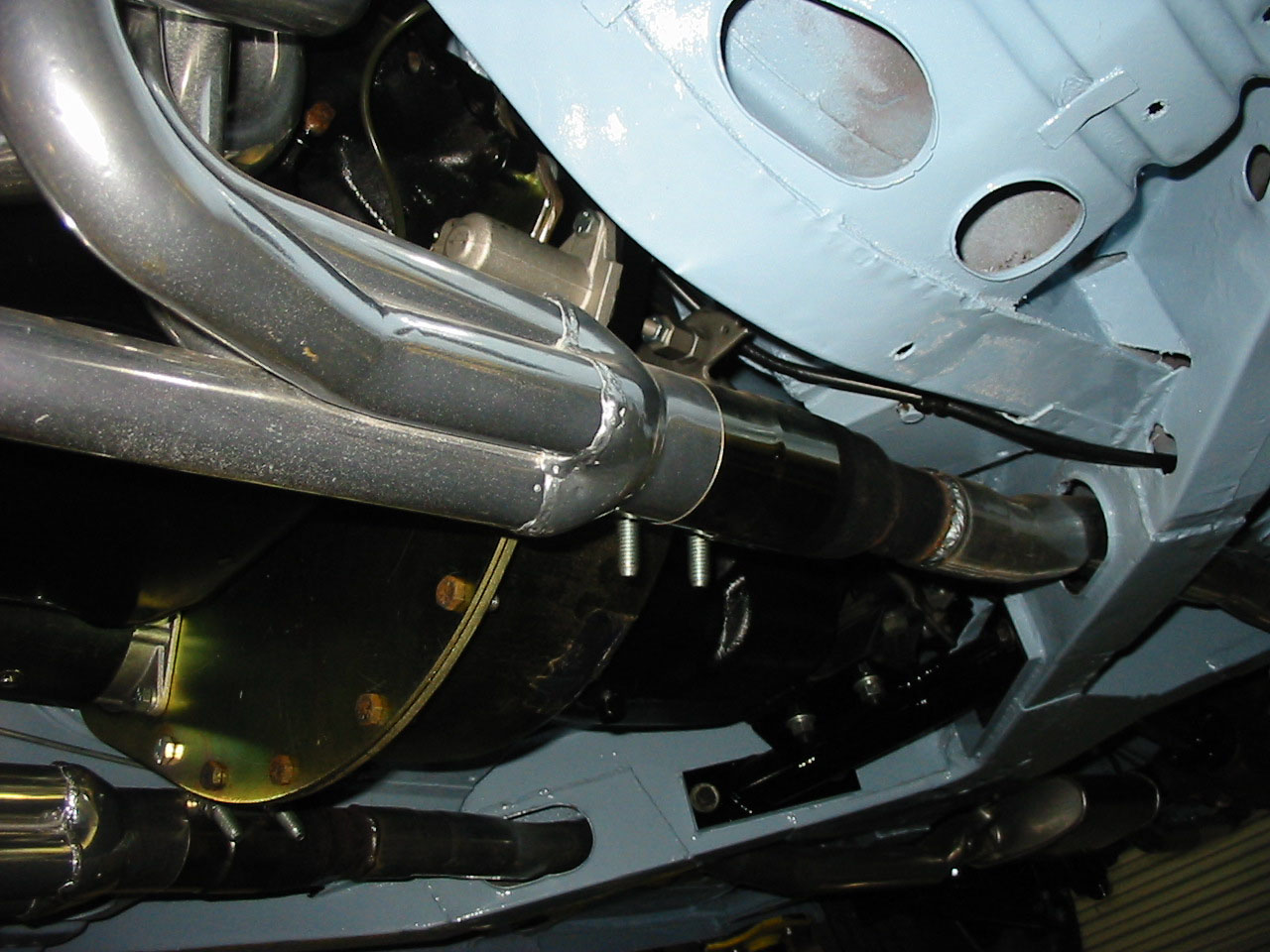

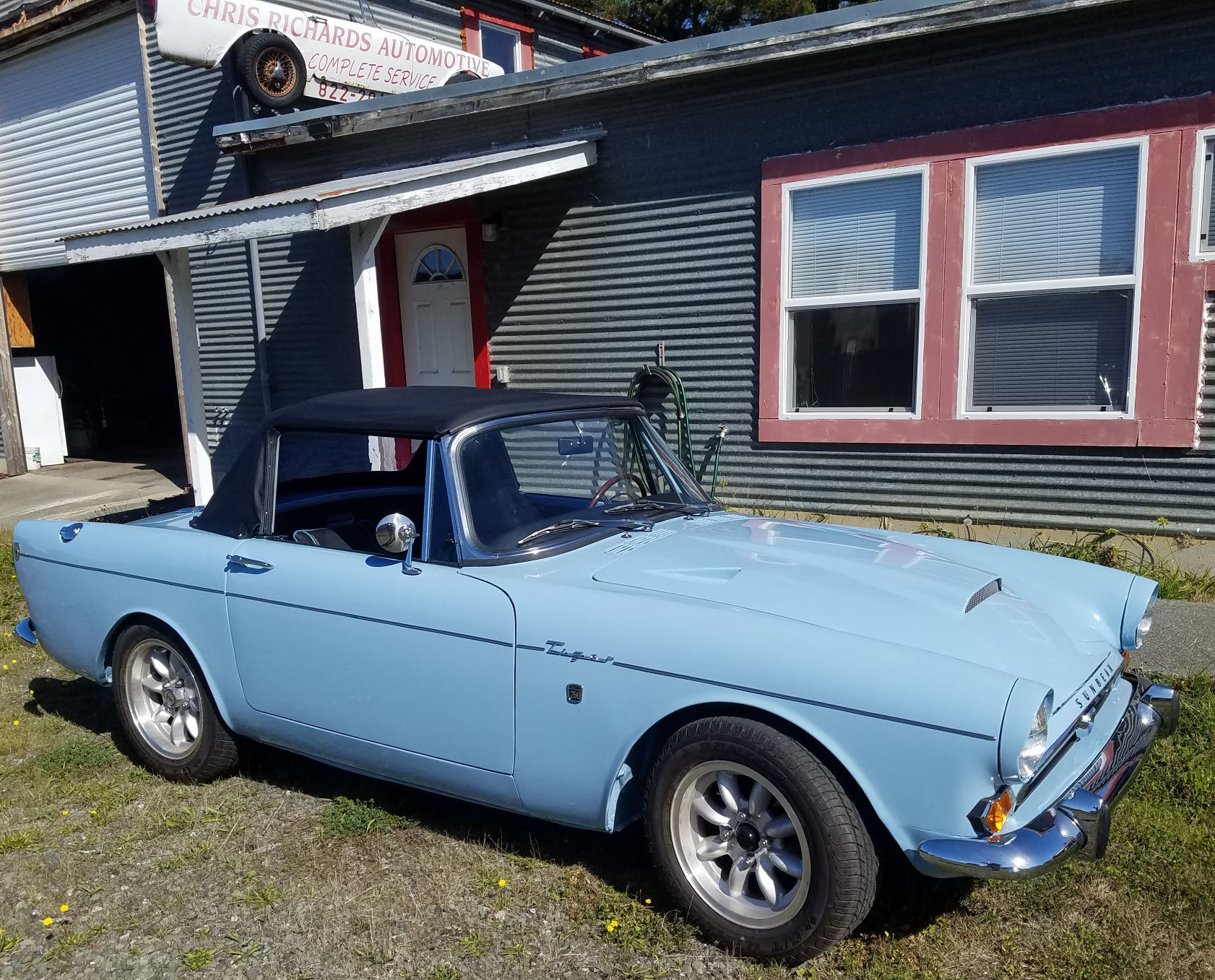

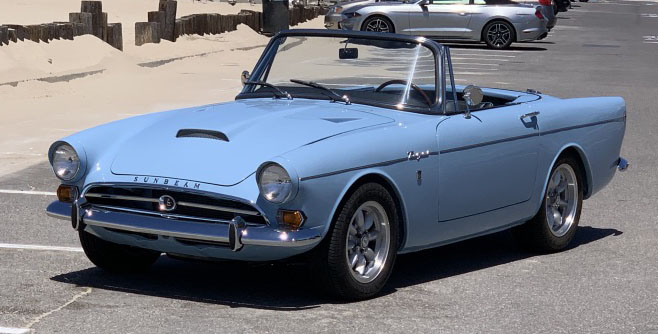

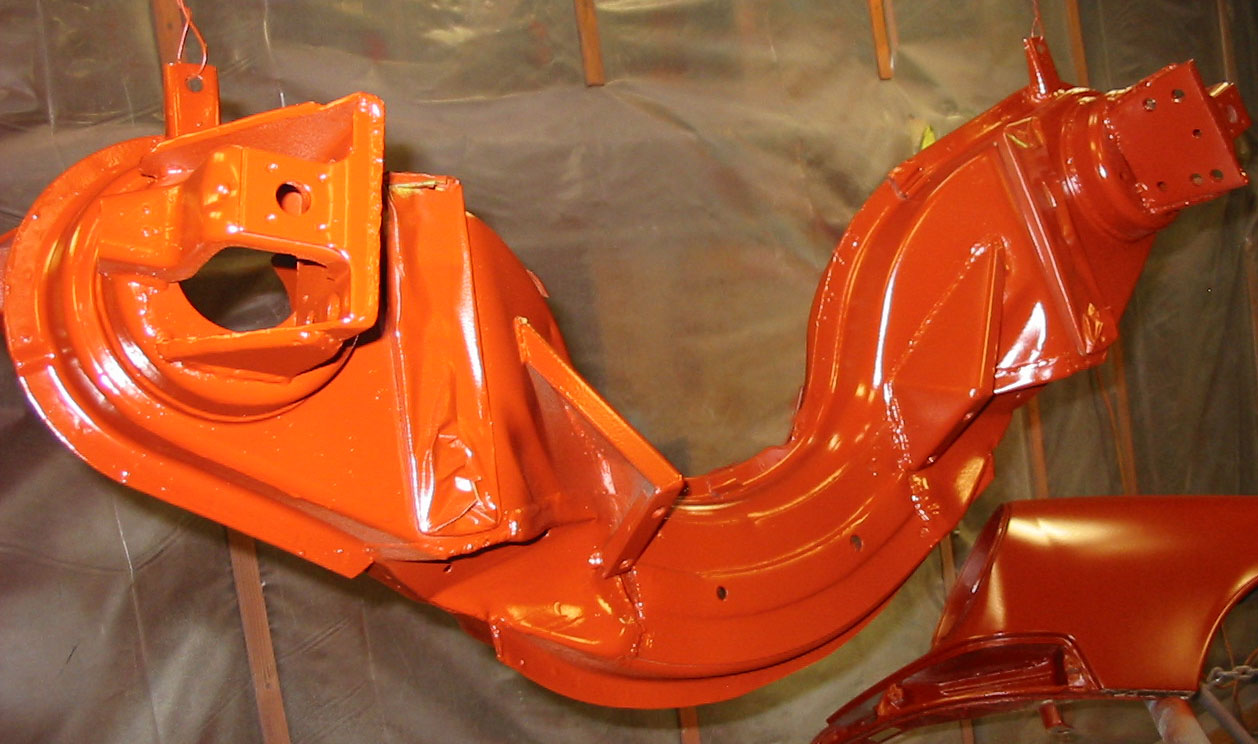

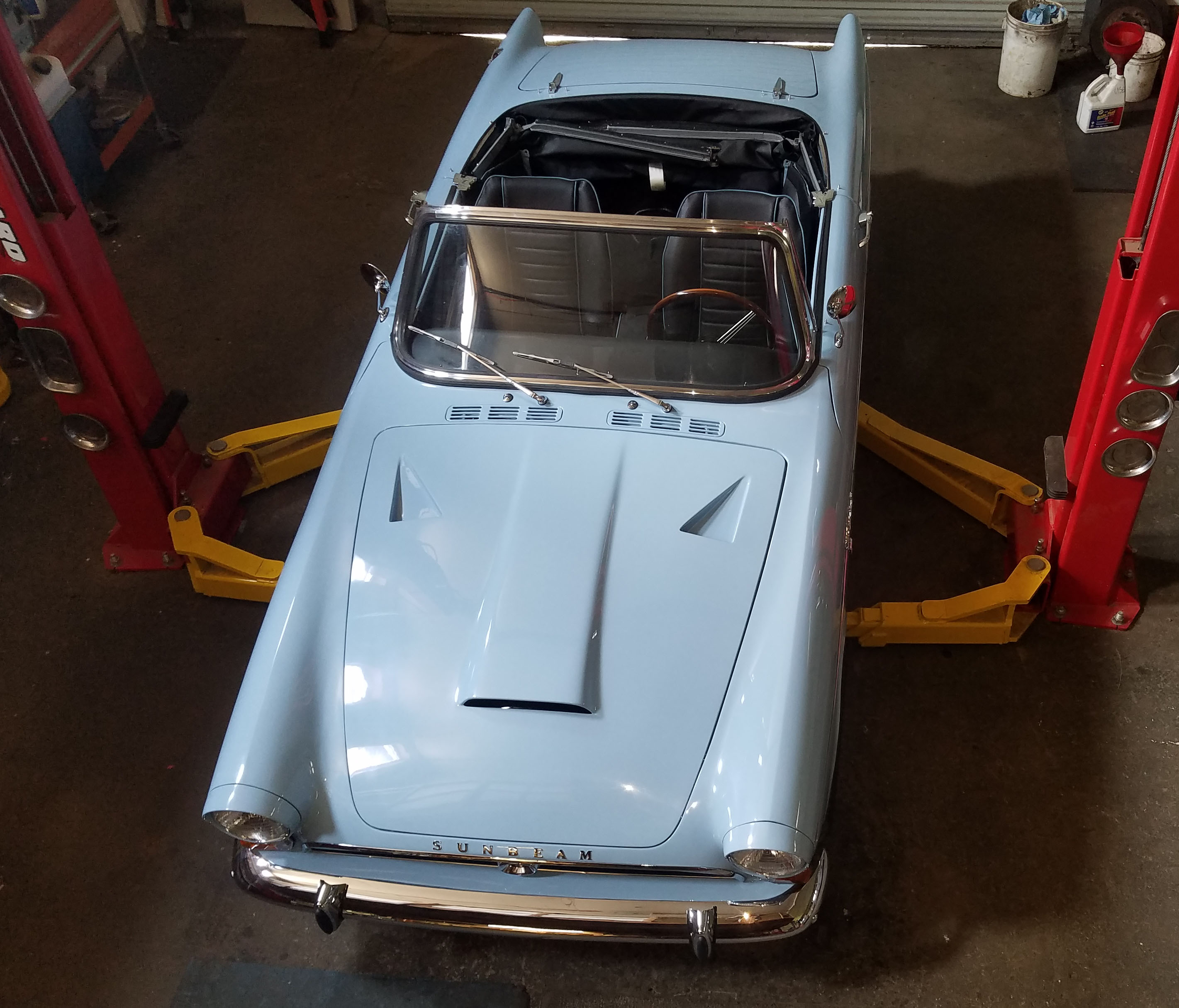

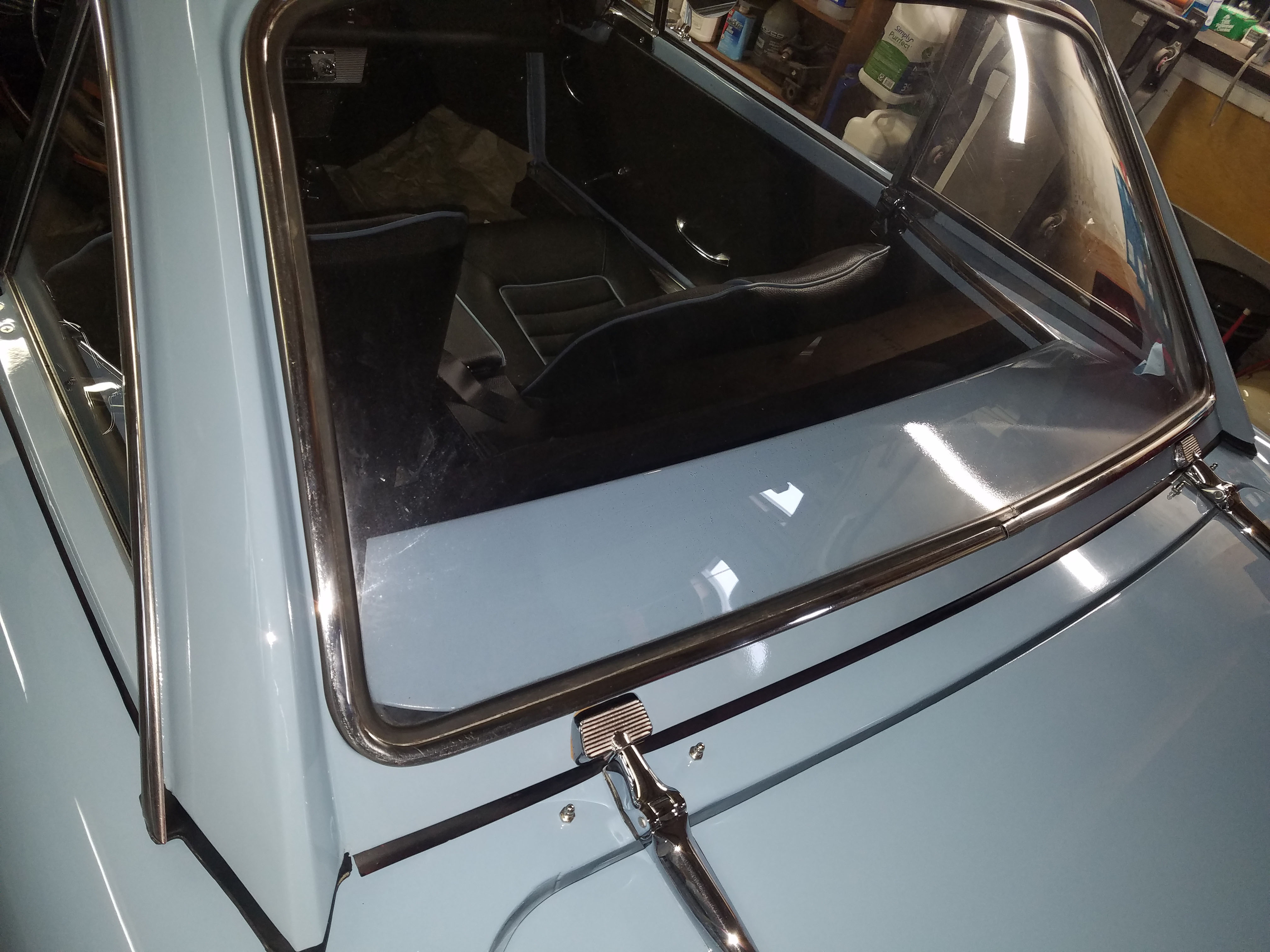

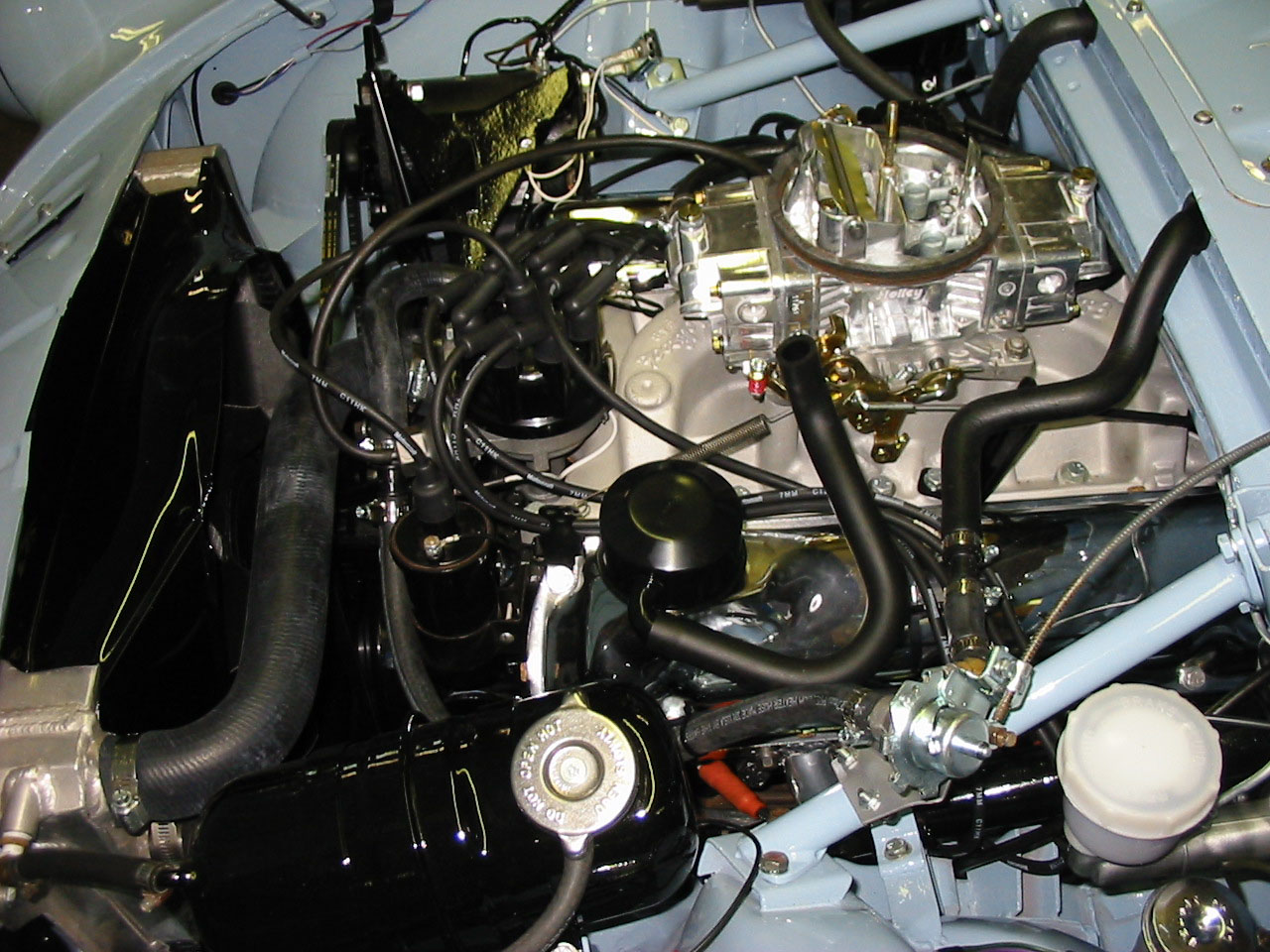

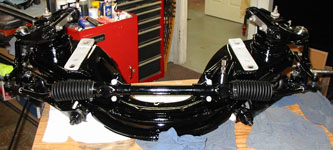

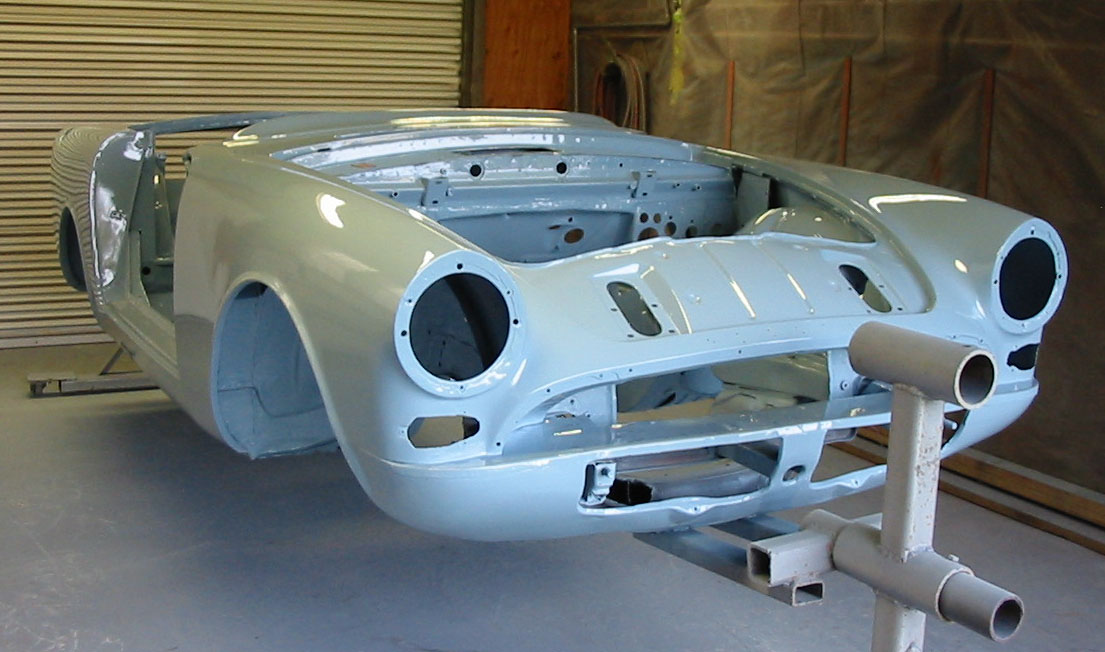

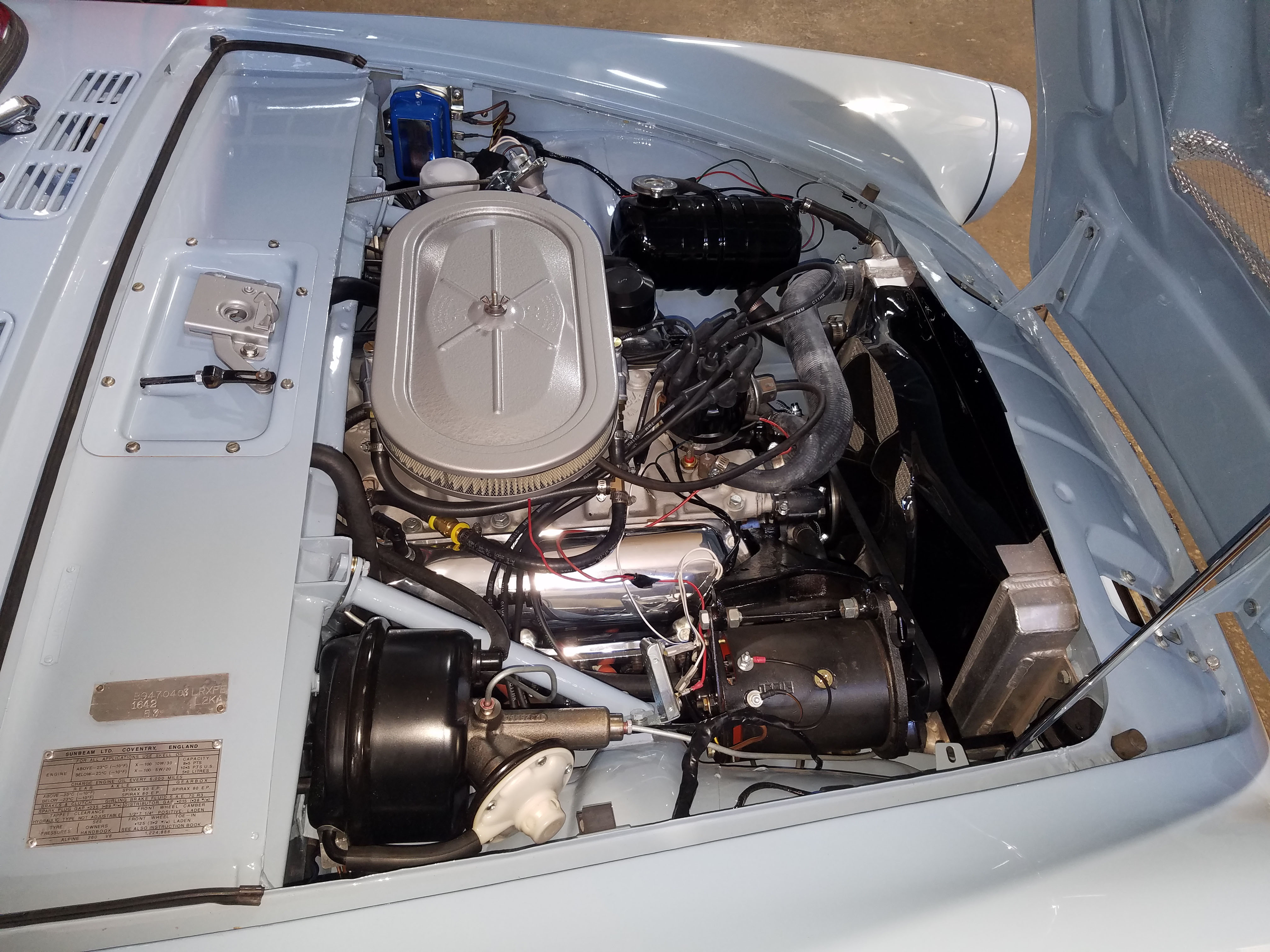

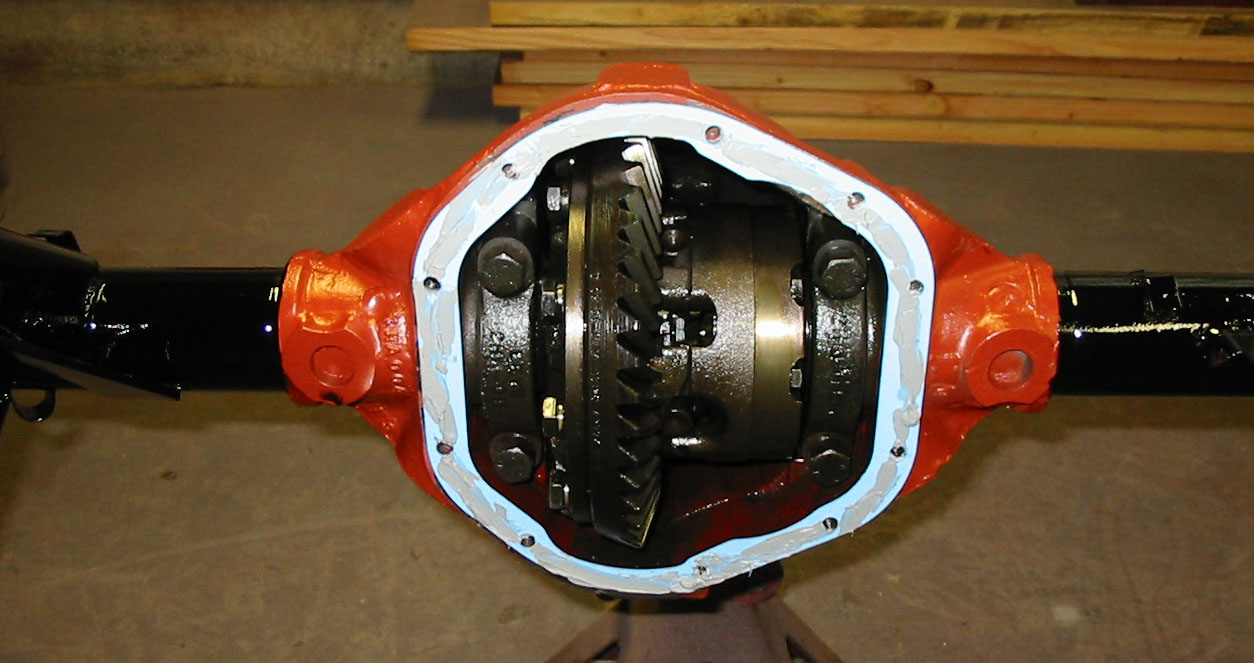

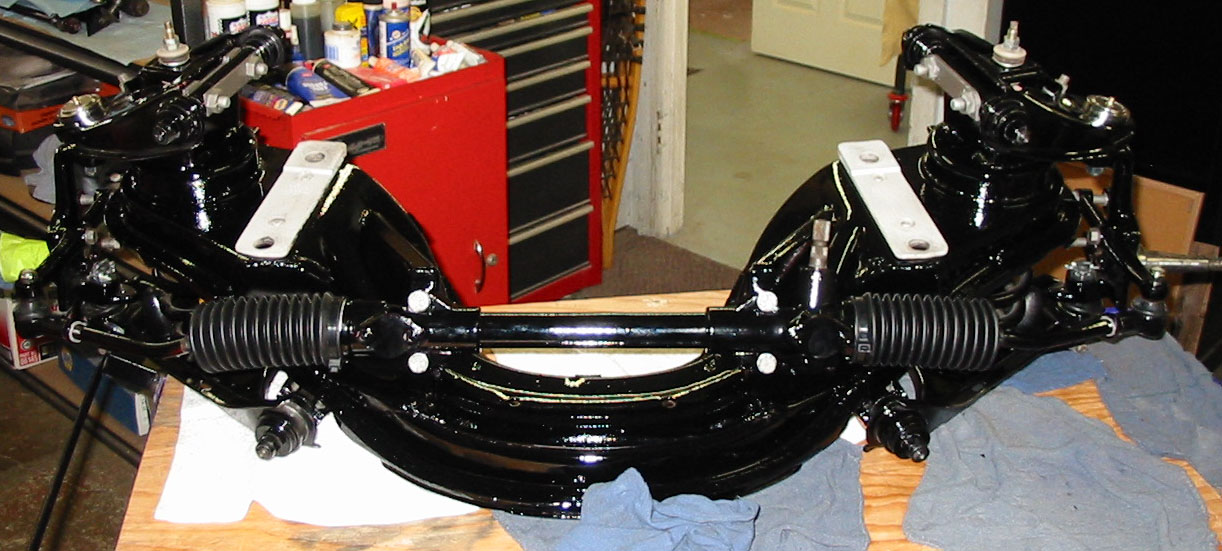

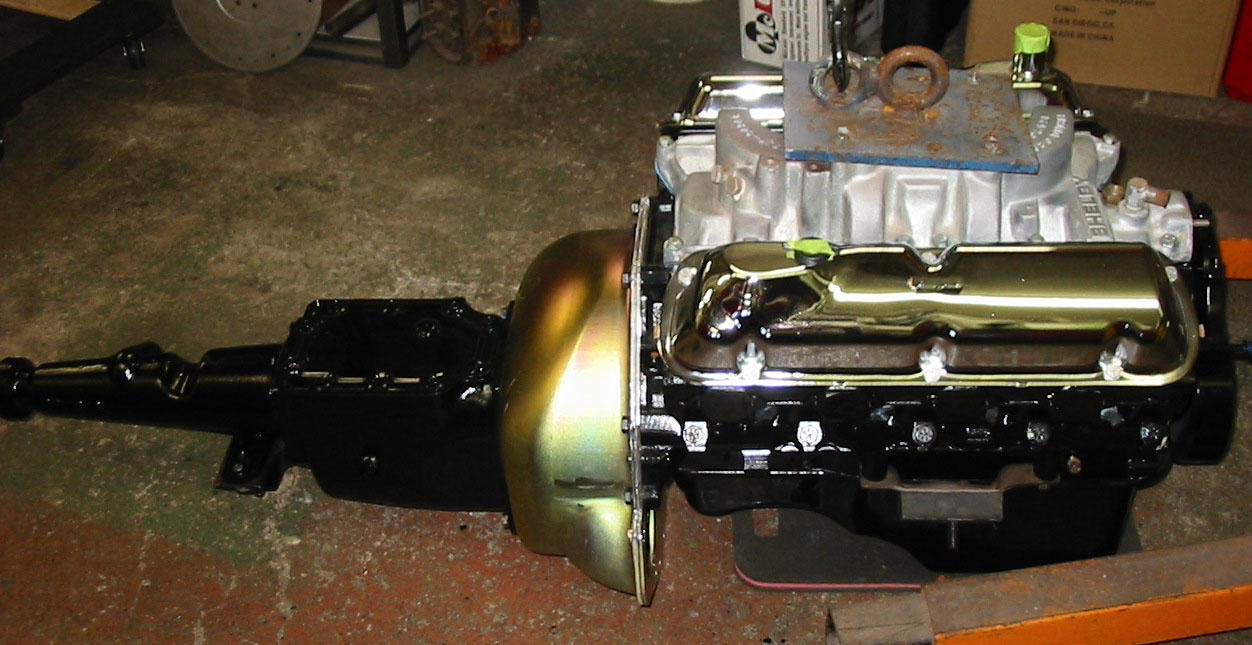

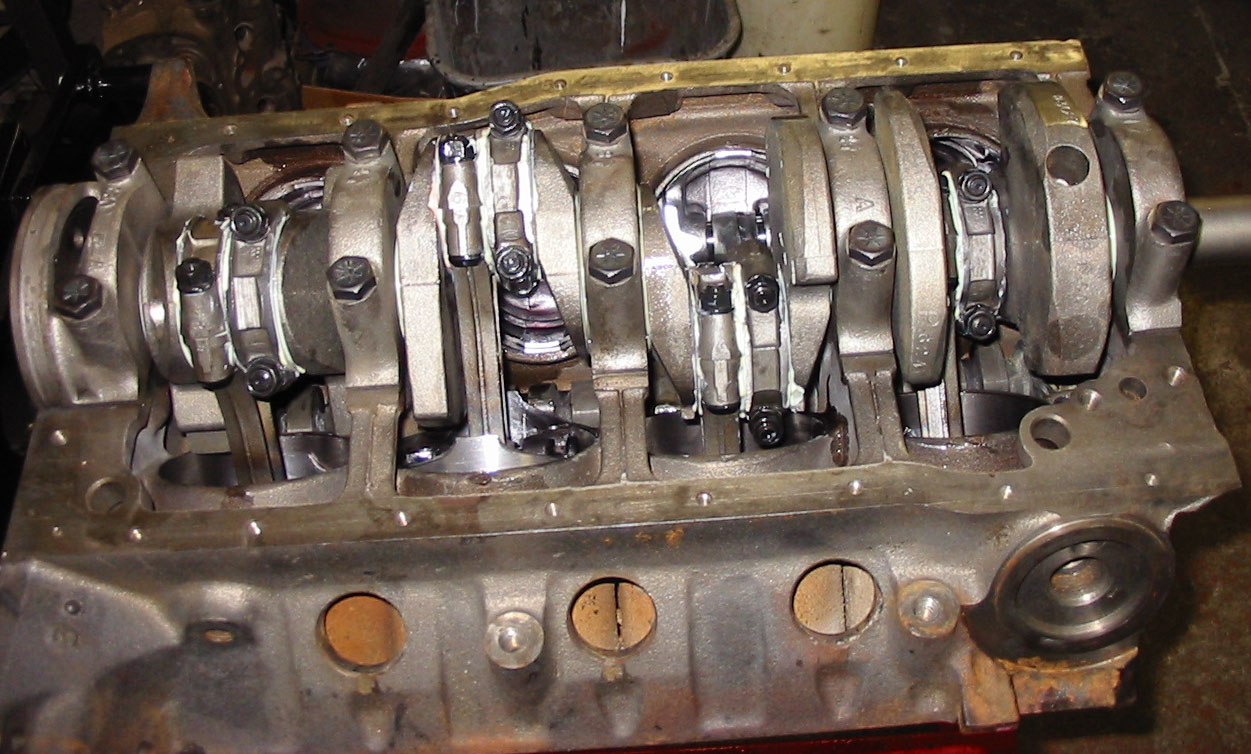

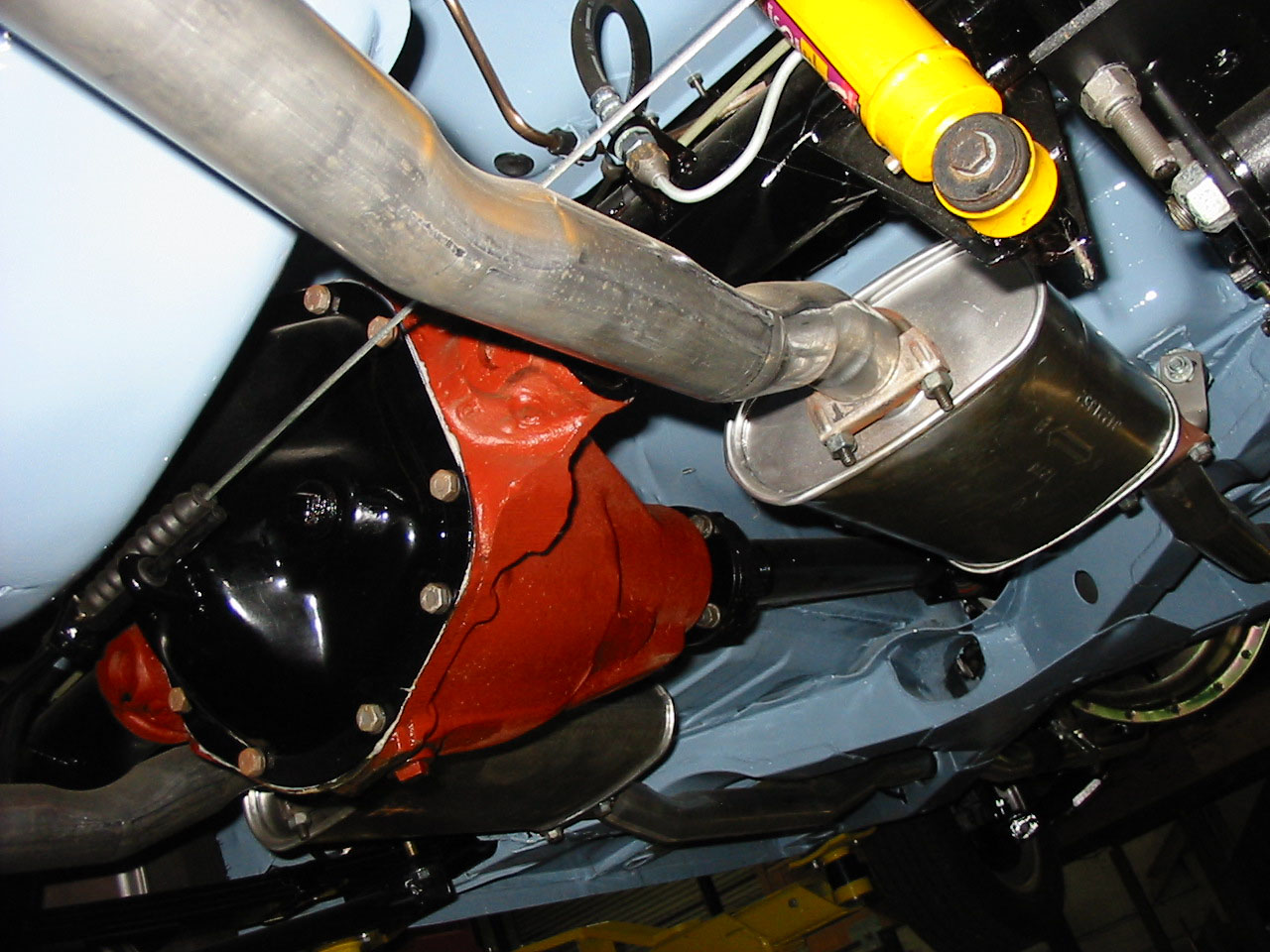

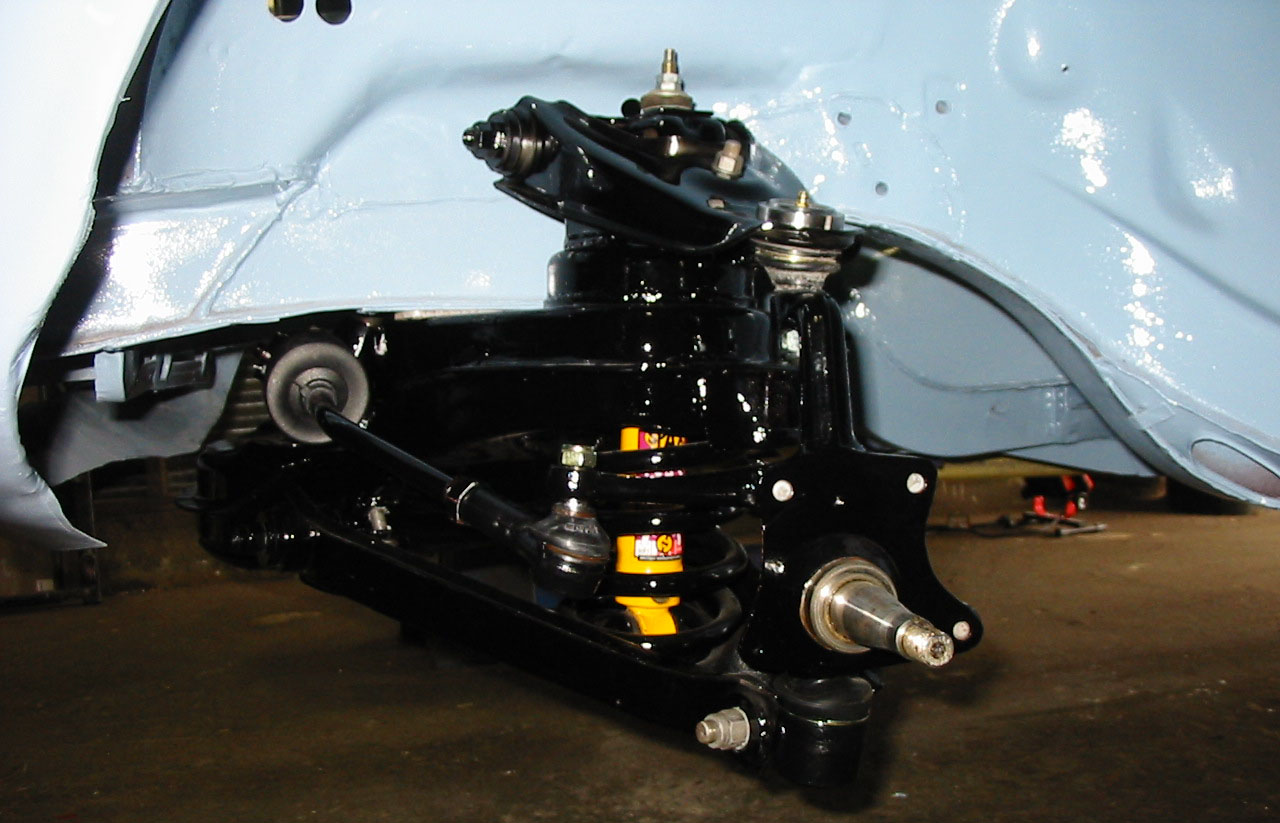

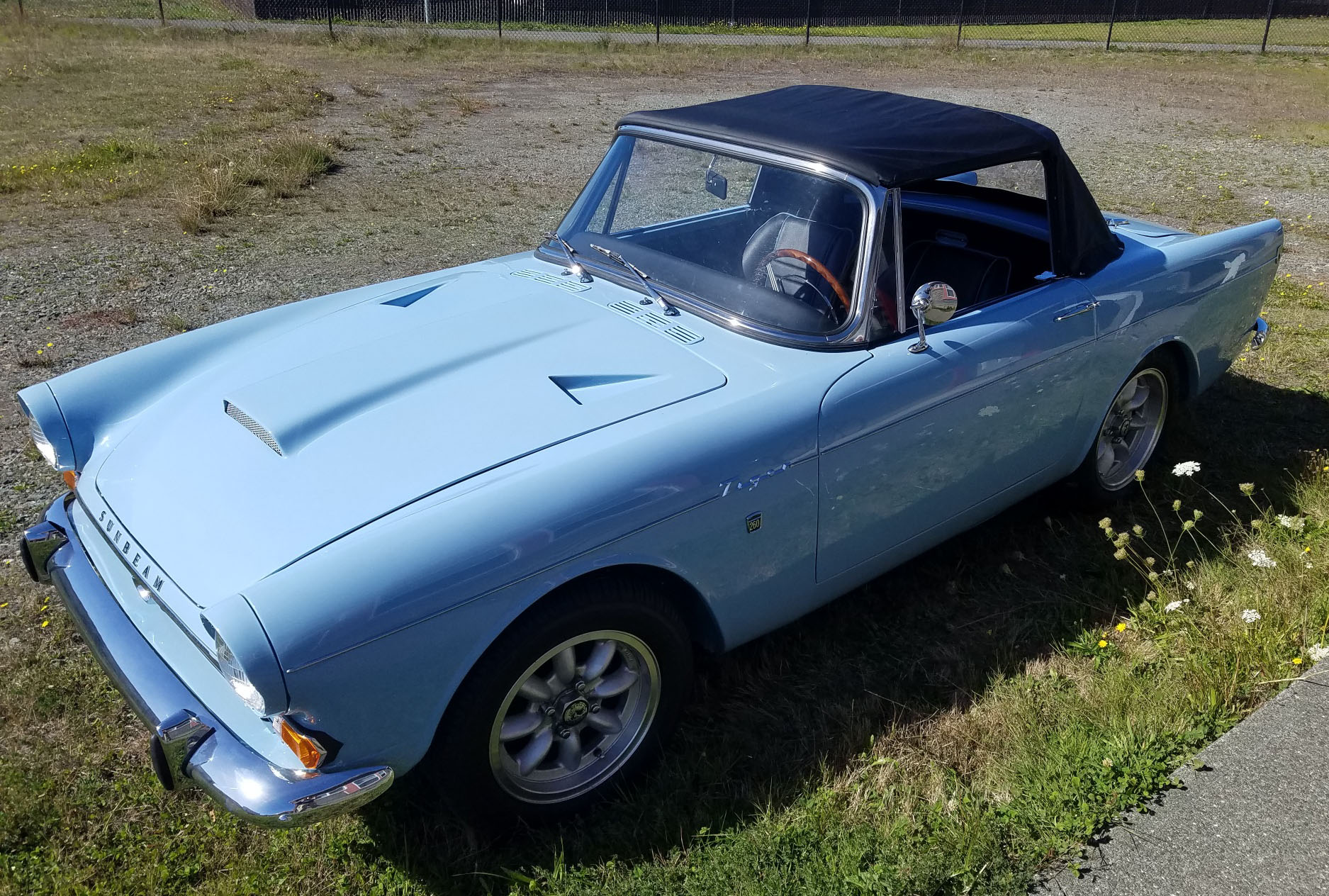

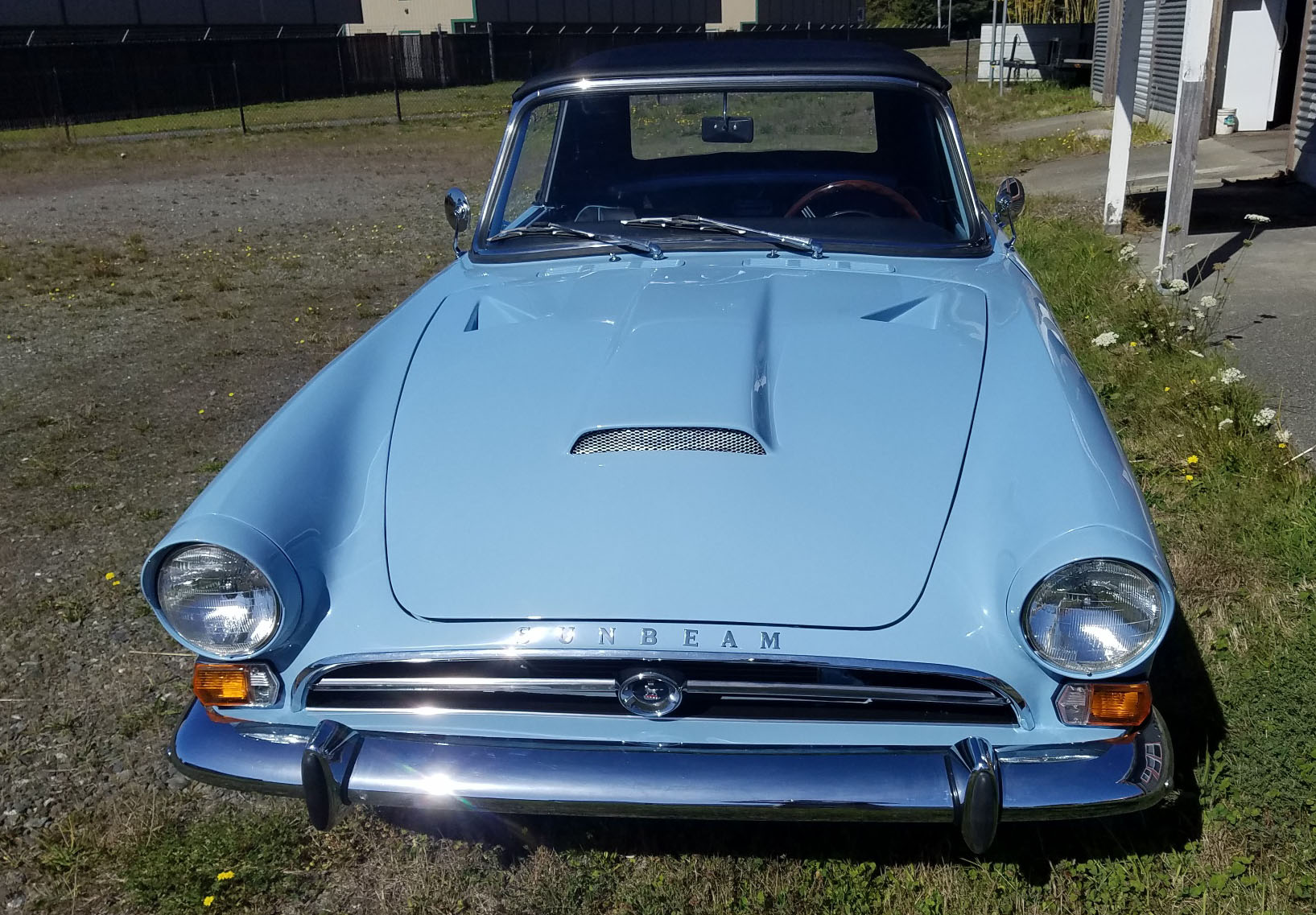

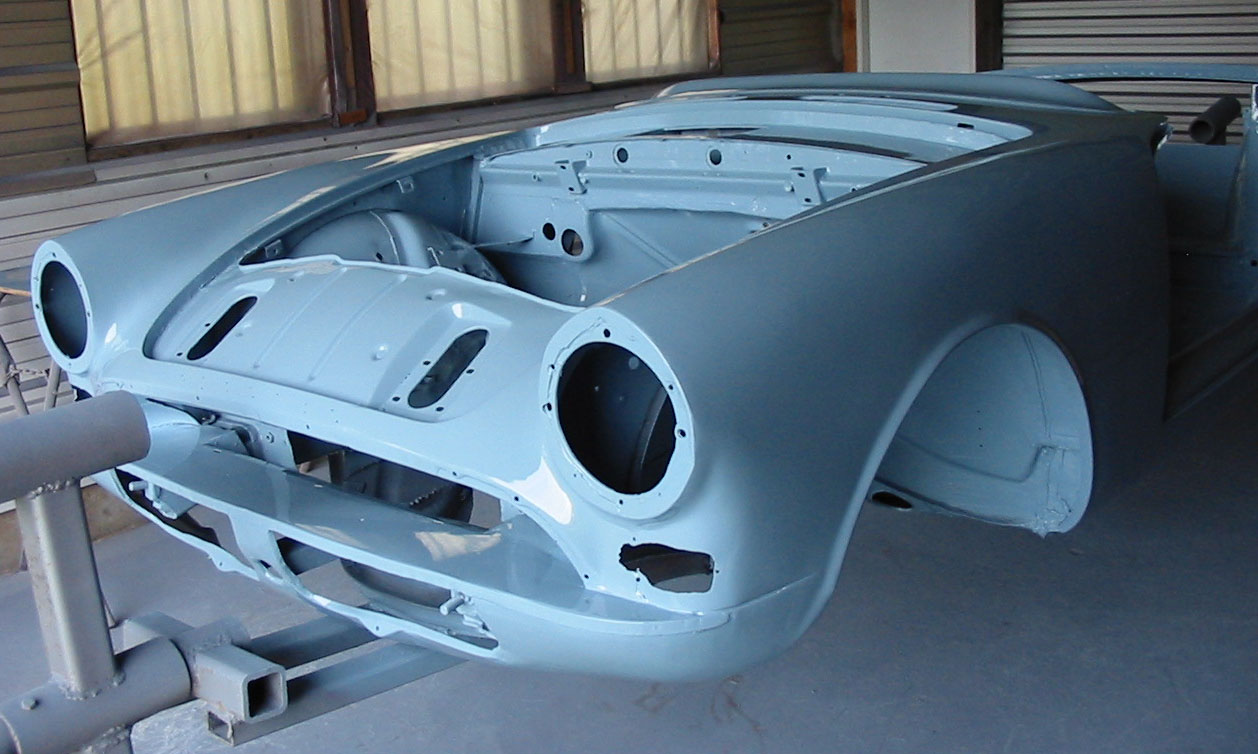

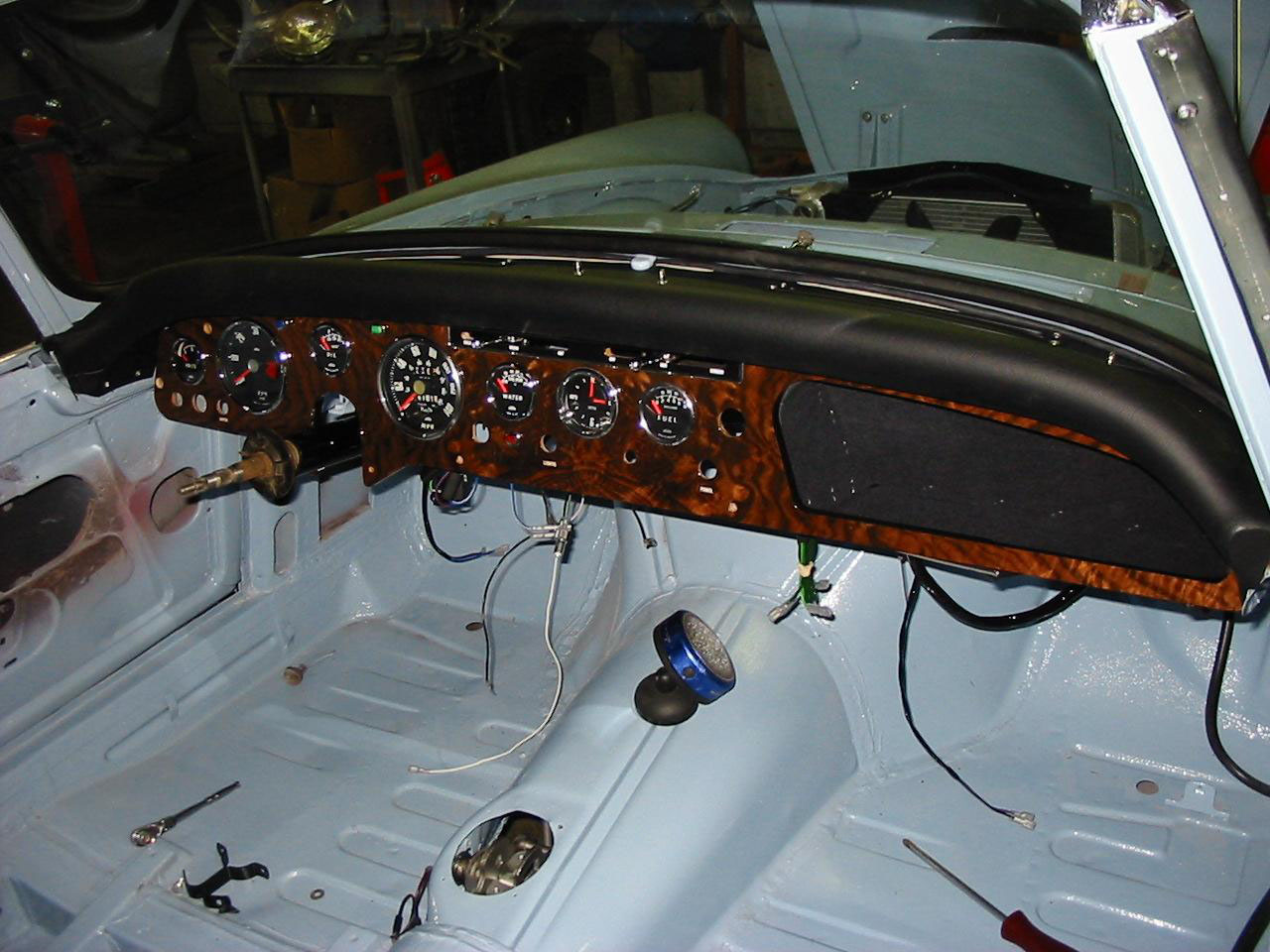

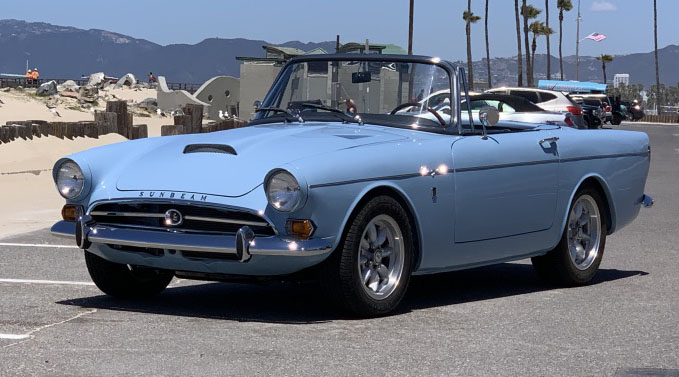

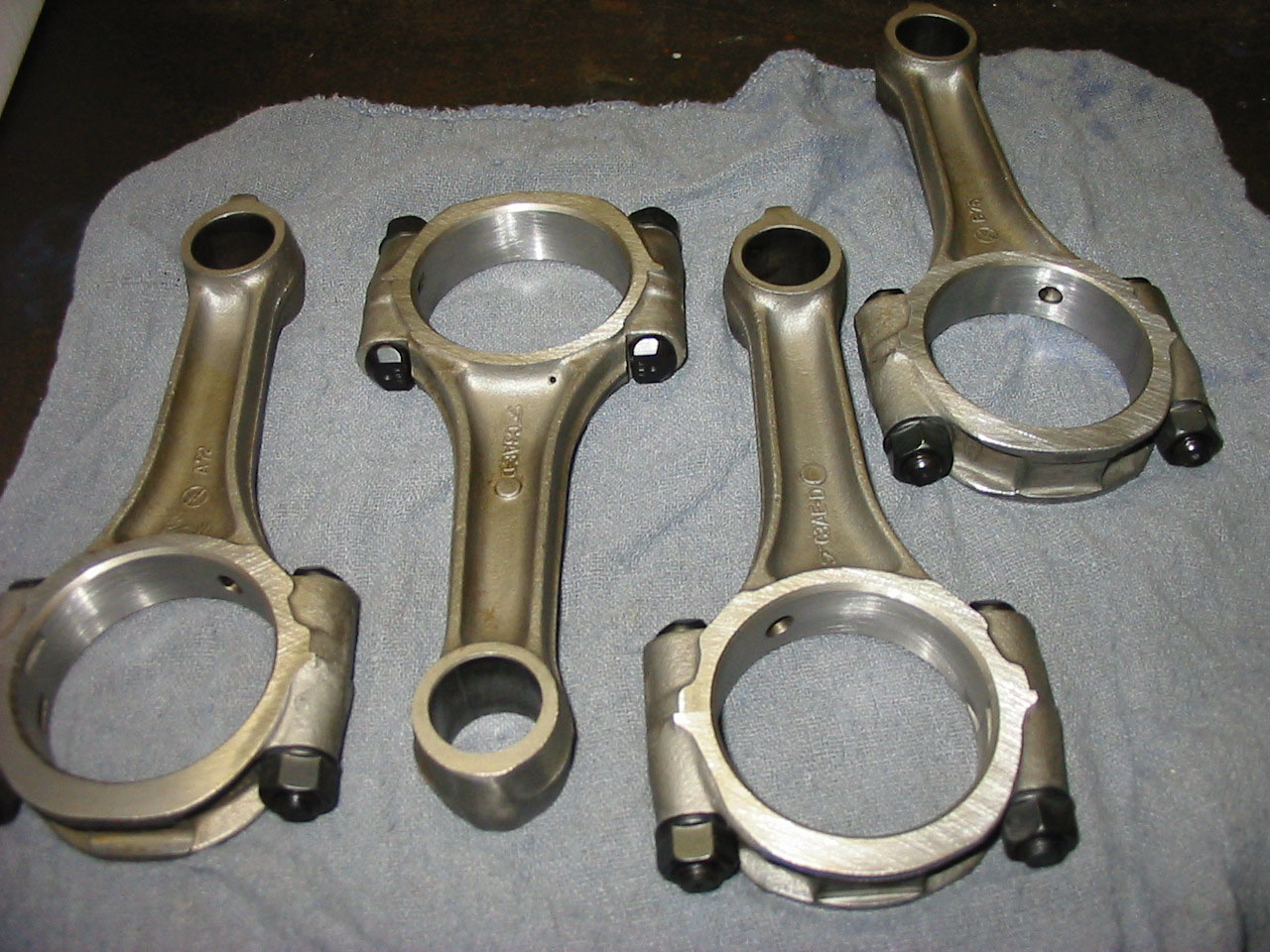

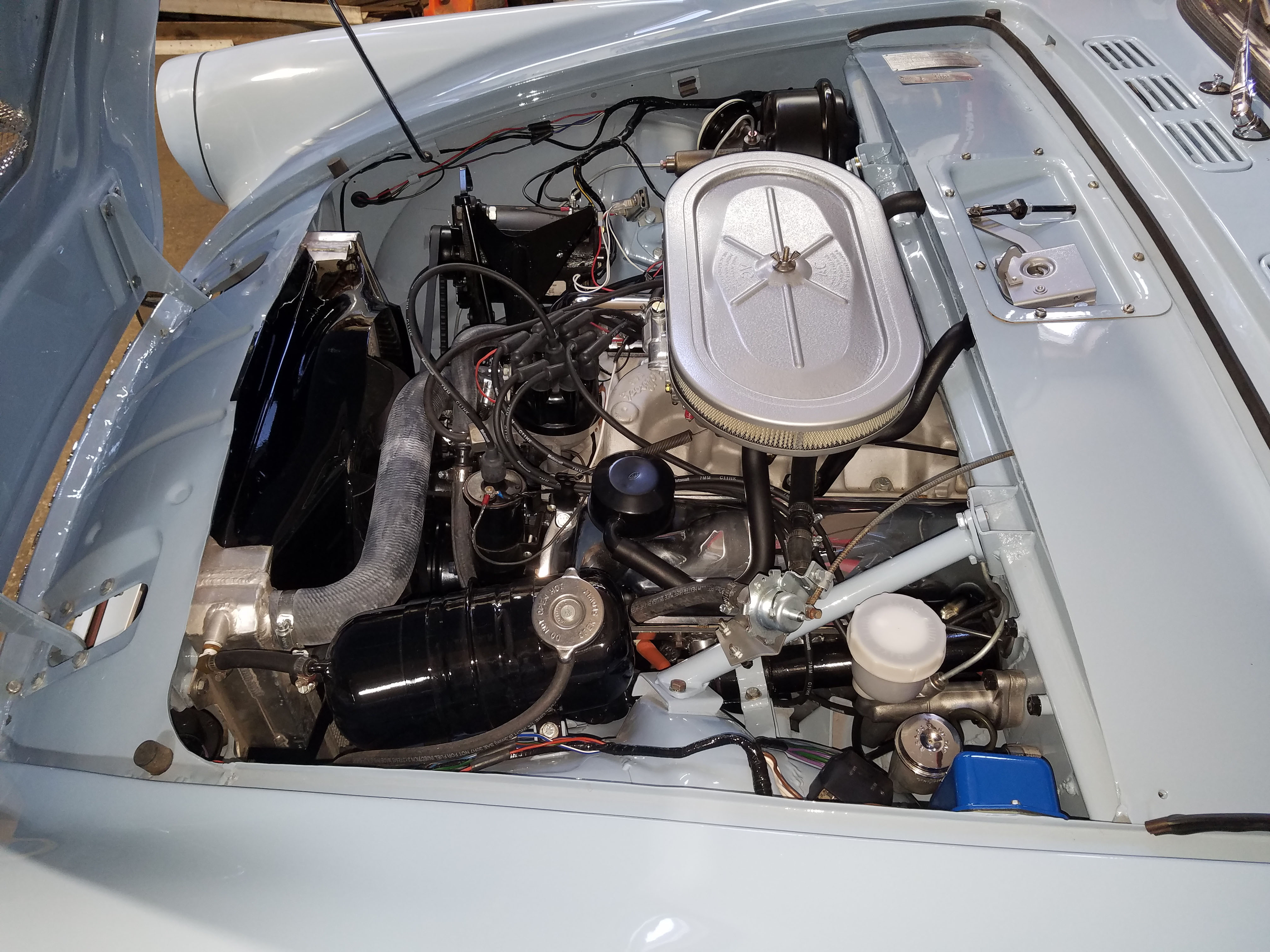

Painted on Rotisserie Painted on Rotisserie Front Suspension Upgrade Front Suspension Upgrade 2 Wishbone in Red Oxide Front Suspension Front Suspension Ready Front Suspension Upgrade Ring and Pinion Finished Differential Reconed Rods Engine Assembly Hypereutectic Pistons Heads Installed Engine and Transmission Bottom in Blue Bottom in Blue X Bottom in Blue 2 Engine/Carb Installed Underside Front View Underside Middle View Underside Rear View Finished Rear Differential Left Header Picture Dash Installation Dash Interior Shot Interior Shot Engine Compartment Left Engine Compartment Right Soft Top Down View Hard Top On View Hard Top Rear View Soft Top Up Top Up 2 Soft Top Up 3 Beach Shot Beach Shot Two Beach Shot Three
